Our high temperature heat pumps are among the most efficient on the market for heating homes, buildings, or factories. Reversible air-source heat pumps are the optimal solution for sustainable cooling and heating buildings or factories. Leomon offers a full range of commercial/industrial heat pumps with temperatures up to 80°C.
Applications
* Heat recovery in hotels, food processing and pharmaceutical industries, energy supply, and data centers
* Hot water applications with strict hygienic requirements in hospitals, nursing homes, and other areas
* High-temperature hot water needs in various industrial applications
* Combining booster solutions with low-temperature heating
Heat source: water or brine
Design
* Compact, space-saving design
* Maximum source temperature between +11°C and +42°C
* Compressor overcurrent protection
* Automatic and forced defrost functions
* Anti-freeze function
* Automatic system operation even if the control panel is missing or damaged
Output Range
Heating output ranges from 30 kW to 130 kW; cascaded to 390 kW
Specifications
| Model |
MG-030KFGRS |
MG-030KFGRS/380 |
MG-050KFGRS |
MG-10KFGRS |
| Standard components |
Cabinet/color |
spray coating |
| Refrigerant |
R134A |
| Power supply |
220V~240V/50Hz/1ph |
380V~415V/50Hz/3ph |
| Compressor type |
Copeland EVI compressor |
| Compressor model / quantity |
ZW30KSE*1 |
ZW34KSE*1 |
ZW61KSE*1 |
ZW61KSE*2 |
| Condenser |
high efficiency shell and tube heat exchanger |
| Economy unit |
plate heat exchanger |
| Evaporator |
blue hydrophilic aliuminium foil,wavy fin and copper tube heat exchanger |
| Throttle unit |
heat expansion valve |
| A/C contactor |
Fuji |
| Thermal relay |
Fuji |
| Controller |
Muti-function controller |
| Protection function |
|
Tempreature protection, time protection, water flow protection, antifreeze protection, current protection |
| Water pressure switch |
|
0.015Mpa :OFF, 0.03Mpa: ON |
| Low pressure switch |
0.05/0.15MPa |
| High pressure switch |
3.0/3.4MPa |
| Power supply line size |
2.5mm2 |
2.5mm2 |
4mm2 |
6mm2 |
| Package |
W*D*H |
900*500*1220 |
900*500*1220 |
1150*510*1420 |
1540*820*1320 |
| Specifications |
Heating capacity(A/20ºC) |
kW |
7.4 |
8.3 |
13.8 |
27.6 |
| Input power when heating |
kW |
2.9 |
3.3 |
5.4 |
10.8 |
| COP |
kW/kW |
2.55 |
2.52 |
2.56 |
2.56 |
| Rated outlet water temp |
ºC |
70 |
| Max outlet water temp |
ºC |
80 |
| Water flow |
m3/H |
2.2 |
2.5 |
4.1 |
8.1 |
| Level of protection |
|
IPX4 |
IPX4 |
IPX4 |
IPX4 |
| Electric shock proof grade |
|
I |
I |
I |
I |
| Noise |
dB(A) |
≤55 |
≤55 |
≤58 |
≤66 |
| Net weight |
kg |
112 |
112 |
164 |
320 |
| Gross weight |
kg |
118 |
118 |
174 |
333 |
| Dimension |
W*D*H |
830*490*1160 |
1110*490*1260 |
1450*740*1150 |
| Pipe size |
mm |
DN25 |
DN25 |
DN25 |
DN32 |
| Working mode |
|
Heating mode |
| Remarks: |
| Working air temperature range:5ºC to 43ºC |
| Rated working condition: Heating: air temperature (DB/WB): 20ºC/15ºC, Initial water temperature: 15ºC, final water temperature: 70ºC or 80ºC. |
Get More Help
Please contact us for more information and a quote on our high-temperature heat pumps.
|
|

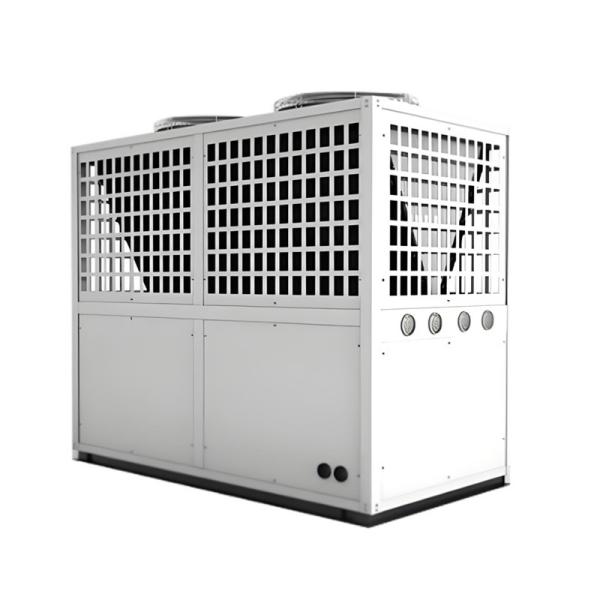

Air Source Heat Pump 80 Degrees Images
|
